AVM-SFX Handheld single gerb holder

Boom fan; 5-way handheld gerb holder

With Pyroterra Lighttoys Boom products, you can make the most epic pyrotechnic shows ever! This pyrotechnic ignition device ignites professional pyrotechnics (gerbs). Note that you need to buy Pyrotechnics in your state to use Boom products.
Boompoi is built from hardened aluminum - to keep low weight and durable structure. The end of the tube is equipped with a quick connection terminal. For easy connection of the wires from pyrotechnics. The trigger is done by a built-in battery with power for a lot of usages.
Length:                        25 cm
Tube diameter:              20 mm
Weight:                         190 g
Battery life:                   20+ triggers
Charging time:               1h

Boom Poi; handheld gerb holder

With Pyroterra Lighttoys Boom products, you can make the most epic pyrotechnic shows ever! This pyrotechnic ignition device ignites professional pyrotechnics (gerbs). Note that you need to buy Pyrotechnics in your state to use Boom products.

By this innovative product, stereo audio signals of first-class quality are provided absolutely synchronously to your show. It is, in other words, a kind of ‘radio-controlled CD player’ only that this does not lead to time errors (asynchrony) unlike many common playback devices.
The PFE Profi Audio works completely without any data compression and provides the sound quality of a real CD. When using conventional data compression techniques like the well-known MP3, losses in sound quality occur which are recognized not only by music freaks. That is why MP3 is unsuitable for professional artists and expert technicians.
The music source is a WAV file (an audio data file in the wave format) on your computer. If you want to copy the tracks of a CD as a WAV file to your computer, there are a lot of specific programs for doing so. The software ‘Project Maker’ is available free of charge in the download section on our website. This software enables you to transform the WAV file into a file playable by the device. Afterwards this file can be copied by a card drive to the flash card. Finally insert this card into the slot of the PFE Profi Audio.
The major advantage of the CF card is that it is insensitive to shocks, dust, scratches, cold, heat and condensation.
For starting the playback you simply program a channel, preferably channel 1, in the menu of the device. As soon as you start your automatic script at the controller, the device starts the music regardless if the script has been made conventionally or with the Composer. In addition you have the opportunity of programming a test channel for a sound check. To start the test you simply fire this channel. At the end of the sound check quit the firing mode and the device will stop.
Specifications:
Dimensions:                          103 x 74 x 210 mm Net weight:                           1,400 g

CF memory card, 2GB

Explo NiMH Charger

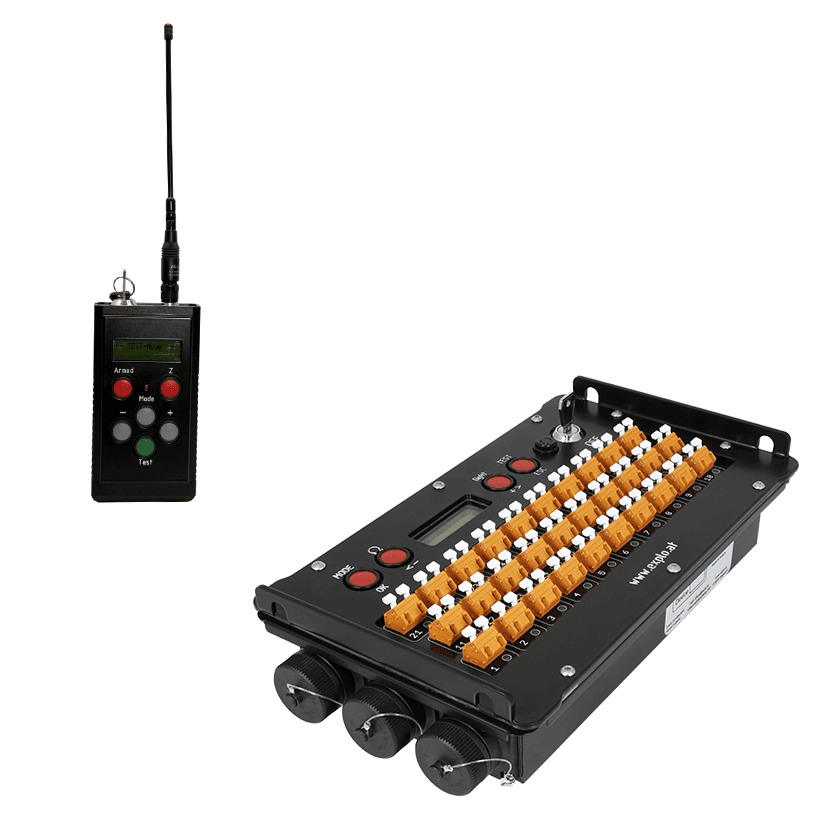

The RX2-20K is a receiver with 20 individually controllable channels. Due to its channelnumber and low size and weight it is especially well suited for indoor events or outdoor shows where flexible positioning of the receivers is important.
Thanks to a seperatly available mount it can be easily be mounted on angle shot systems or truss constructions, which allows for a space saving design of your shows.
Thanks to the bidirectional radio control important stati of the receiver (Ohm measurements on every channel, battery status and many more) can be checked at the transmitter.
The RX2-20K allows for extremely fast ignitions in steps of 10ms. Thusly there are no boundaries for the showdesign.
FEATURES: -  Ohm measurement on every single channel.
-  Safe, multiple times encrypted radio control.
-  Watertight design protects optimal from rain.
-  Powerful NiMH-battery.
-  Extremely long standby.
Technicals details:
Channels:                            20 Ignition Energy:                   45-50V / 5x 330uF Measurements:                    400 x 71 x 58mm
weight:                                1,1kg Power supply:                       1x NiMH-Akku 12VDC
Case:                                   Powder coated aluminium  Radio range:                         800m Standby:                               40h / 80h (sleep-mode)

Explo RX2-20K receiver

The RX2-20K is a receiver with 20 individually controllable channels. Due to its channelnumber and low size and weight it is especially well suited for indoor events or outdoor shows where flexible positioning of the receivers is important.

Explo RX2-30K receiver

The RX2-70K is a receiver with 70 individually controllable ignition channels. Thanks to its large number of channels and sturdy case it is especially well suited for outdoor shows, that require many different ignitions.
Thanks to the bidirectional radio control important stati of the receiver (Ohm measurements on every channel, battery status and many more) can be checked at the transmitter.
The RX2-70K allows for extremely fast ignitions in steps of 10ms. Thusly there are no boundaries for the showdesign.
FEATURES: -  Ohm measurement on every single channel. -  Safe, multiple times encrypted radio control. -  Sturdy outdoor case with flame retardant coating. -  Watertight design protects optimal from rain. -  Powerful NiMH-battery. -  Extremely long standby. -  Confetti-Mode to ignite single Confetti-Shooter.
Technical details:
Channels:                        70 Ignition Energy:               30-80V / 4x 330uF Measurements:                335 x 290 x 155mm
Weight:                           4,7kg Power Supply:                  2x NiMH-batteries 12VDC
Case:                              HPRC-Case Radio range:                    800m Standby:                         70h / 140h (Sleep-Mode)

Explo RX2-70K receiver

The RX2-70K is a receiver with 70 individually controllable ignition channels. Thanks to its large number of channels and sturdy case it is especially well suited for outdoor shows, that require many different ignitions.

The Timecode Modem is used to synchronize the Explo system with an external Timecode, and was specifically developed to be used with Explo transmitters (TX2-Stage or TX2-70K). It allows for reading of SMPTE- and MIDI Timecodes, as well as writing MIDI Timecodes.
A connection cable for both types of transmitters is included, as well as a charger for the built in NiMH-battery.
FEATURES:
-  TC-Modem, specifically designed for the X2 series. -  Simple, intuitive use. -  Cost-efficient alternative to third-party TC-Modems.
Technical details:
Measurements:                       220 x 155 x 65mm
Weight:                                  1,8kg Power supply:                         2x NiMH-Battery 12VDC Case:                                     Aluminium case Standby:                                7 hours Supported TCs:                       SMPTE (Read), Midi (Read / Write)

Explo TCM timecode modem

The Timecode Modem is used to synchronize the Explo system with an external Timecode, and was specifically developed to be used with Explo transmitters (TX2-Stage or TX2-70K).

The TX2-70K is a transmitter used to control all explo receivers featuring the bidirectional radio control. Apart from manual ignition, you can also start preprogrammed automated shows from the transmitter, during which receivers and the transmitter, will synchronize by use of an internal Time Code.
Thanks to its sturdy, weathertight and flame retardant casing, this transmitter is especially well suited for outdoor shows. The ten freely programmable spare channels, which can even be programmed to start seequences at any time, make it a great partner for indoor shows as well.
FEATURES: -  Sturdy outdoor casing made of flame retardant material. -  Ten freely programmable spare keys. -  Powerful NiMH-battery. -  Control for up to 8.000 sigle ignitions with the AutoShow. -  Synchronization via FSK Timecode already built in. -  Safe, multiple times encrypted radio transmission.
Technical details:
Measurements:                      335 x 290 x155mm
Weight:                                  4,6kg Power Supply:                        2x NiMH-Battery 12VDC
Case:                                     HPRC-Case Radio range:                           800m Standby:                                16 hours

Explo TX2-70K transmitter

The TX2-70K is a transmitter used to control all explo receivers featuring the bidirectional radio control.

Basically the Split Matrix Modules work just as the Matrix Modules with 50 or 100 Outputs. The difference is that the Split Matrix Modules are ideally suited to fire pyrotechnical effects on numerous individual positions by using only one receiver. Typical applications are the installation of effects on the facades of buildings, large front pieces and the usage of pre-assembled platforms for stage FX. The modules come with four threads on the bottom side and due to that they can easily be mounted on platforms or steel ropes.
As usual all parameters of all outputs can be freely programmed and stepped. The parameters of all outputs can be edited and checked either directly at the receiver or remotely by using the controller PFC Advanced or USB Radio Modem.
Instead of a Matrix Module a so called Adapter Board is applied on top of the PFE Advanced 10 Outputs which has six connectors for multicore cables. The connection between the Adapter Board and the Split Matrix Modules is established with multicore cables.
Every Split Matrix is equipped with two connectors for the multicore cables, so that another cable can be used to connect to the next Split Matrix Board. Star shaped as well as line shaped cable networks are possible. Output 100 is used to calibrate the resistance metering and should be used as close as possible to the receiver so that the cable resistance of the additional wiring is taken into consideration when the device is measuring the resistance of the firing lines.
By using coding bridges the output group(s) a module should have can be determined. It is also allowed to use the same output group on several modules. This is equivalent to a parallel connection of e-matches.
Both, the sockets on the Split Matrix Modules and the connectors of the multicore cables as well as on the Adaptor Board are gold-plated.
Outputs:                                                                         10  Assignment of firing cues without any restrictions:             Yes, 1-999 Firing voltage:                                                                  24 V Firing current:                                                                  50 A, 17 A continuous current Firing LEDs for each output:                                              Yes Source of firing energy:                                                     Rechargeable battery Possibility to activate magnetic valves (i.e. solenoids):         Yes Usage of the stepping extension of the receiver:                  Yes, optional, 0.01 – 99.99 seconds, resolution 1/100 s (i.e. 0.01 s) Simultaneous stepping sequences per device:                      100 Max. firing rate:                                                                100 firings / second Housing:                                                                          circuit board casted in silicone rubber Dimensions Outputs:                                                        168 x 170 x 45 mm Net Weight Outputs:                                                         912 g

Galaxis 10 output split matrix board

The Split Matrix Modules are ideally suited to fire pyrotechnical effects on numerous individual positions by using only one receiver.

-  Absolutely waterproof (IP67) extension module for the PFE Advanced 10 Outputs -  Molded in robust and resistant silicone -  Available with 50 or 100 Outputs -  Gold plated terminals for quick-fastening clamps offer best conductivity -  Integrated, high-brightness firing LEDs on each output for fast testing -  Precise resistance measurement for each individual output -  Output numbers perfectly readable -  Individual programming of all outputs -  Fast and dynamic step sequences with all outputs possible
Specifications:
Outputs:                                                                       100 Assignment of firing cues without any restrictions:            Yes, 1-999 Firing voltage:                                                               24 V Firing current:                                                               50 A, 17 A continuous current Firing LED for each output:                                             Yes Source of firing energy:                                                  rechargeable battery Max. firing rate:                                                             100 firings / second Housing:                                                                        circuit board casted in silicone rubber Dimensions Matrix Module 100 Outputs:                           340 x 225 x 50 mm
Net Weight Matrix Module 100 Outputs:                            2,600 g

Galaxis 100 channel matrix board

-  Absolutely waterproof (IP67) extension module for the PFE Advanced 10 Outputs -  Molded in robust and resistant silicone -  Available with 50 or 100 Outputs -  Gold plated terminals for quick-fastening clamps offer best conductivity -  Integrated, high-brightness firing LEDs on each output for fast testing -  Precise resistance measurement for each individual output -  Output numbers perfectly readable -  Individual programming of all outputs -  Fast and dynamic step sequences with all outputs possible
Outputs:                                                                      50  Assignment of firing cues without any restrictions:          Yes, 1-999 Firing voltage:                                                              24 V Firing current:                                                              50 A, 17 A continuous current Firing LED for each output:                                            Yes Source of firing energy:                                                 rechargeable battery Max. firing rate:                                                            100 firings / second Housing:                                                                       circuit board casted in silicone rubber Dimensions:                                                                  340 x 115 x 50 mm Net Weight:                                                                   1,600 g

Galaxis 50 channel matrix board

The plug-in Airburst Matrix Module with 60 outputs enables the PFE Advanced receiver to be expanded to a full-featured receiver with 60 outputs. All outputs can be individually programmed and optionally stepped. The parameters of all outputs can be accessed and programmed directly on the device or via radio.
Airbursts from various manufacturers such as LeMaitre and Ultratec can be connected directly thanks to RJ12 connectors. This eliminates the need to cut the plugs, strip the insulation and connect the cables to quick-fastening clamps. The Airburst matrix gives Plug&amp;Play a completely new dimension.
With the Airburst Matrix it is also possible to connect standard e-matches. All the user has to do is insert the cables of the e-matches into unassembled RJ12 plugs and connect them by using a crimping tool. The advantage is that the e-match cable does not have to be stripped and that a show can be reloaded extremely fast. This is highly advantageous when it comes to recurring shows, such as theatre productions or touring events.
Outputs:                                                                    60 Assignment of firing cues without any restrictions:        Yes, 1-999 Firing voltage:                                                            24 V Firing current:                                                            50 A, 17 A continuous current Firing LED for each output:                                          Yes Source of firing energy:                                               rechargeable battery Max. firing rate:                                                          100 firings / second Housing:                                                                     circuit board casted in silicone rubber Dimensions:                                                                340 x 115 x 50 mm Net Weight:                                                                 1,100 g

Galaxis Airburst matrix board with 60 outputs

The plug-in Airburst Matrix Module with 60 outputs enables the PFE Advanced receiver to be expanded to a full-featured receiver with 60 outputs. All outputs can be individually programmed and optionally stepped. The parameters of all outputs can be accessed and programmed directly on the device or via radio.

Galaxis High gain antenna

The PFC Advanced Black Edition. Milled from a solid block of aluminum and anodized in black color, armored like a Leopard II in combat, only 400 g heavier than the standard one, completely waterproof housing (if the breather valve is replaced with a sealed screw). Beast Mode activated. Now it does not matter anymore if you use it for tactical forces, outdoors under the Niagara Falls or in beautiful sunshine in the desert of nowhere. Unlocked and loaded, only your imagination is the limit.
The differences to the PFC Advanced Standard quickly become clear: First, the very robust and absolutely waterproof housing. Besides that, the Black Edition comes with a removable handle that can be plugged in almost everywhere: On the sides, the front and back and even on the bottom side, which allows for tilting the unit if you want to use it on your desktop. Furthermore, it has no key switches anymore. You have a single button to switch it on, which leads you to a code request after selecting the language. The code can be changed to a personal four-digit code, as you e.g. know it from smartphones. In addition a backup switch is integrated by default.
For arming the unit, you slide in the magnetic pen on the side of it while being in one of the firing modes. The connectors of the unit are all waterproof and heavy-duty.
Highlights:
-  Absolutely waterproof (Standard IP65, if breather is replaced with a sealed screw IP67) -  Water- and dustproof membrane keypad -  Extremely robust housing, milled of a solid aluminium block -  Perfectly readable touchscreen in every environmental and light condition -  Graphical, multilingual menu with icons and plaintext -  Fully integrated wireless solution -  Interfaces: SMPTE Timecode, DMX512, USB, RS485 and RS232 -  All important device data of receivers of the Advanced series can be checked and programmed remotely (bi-directional communication) -  Remote Switch Off, Sleep Mode and Wake-Up of Advanced receivers -  Compatible to all other Galaxis devices -  Fires an unlimited number of e-matches simultaneously -  Fires up to 10 million independent effects
Technical details:
-  Dimensions:                        250 x 195 x 67 mm
-  Weight:                               3700g

Galaxis PFC Advanced black edition controller, incl. DMX firing mode, USB cable & DMX box

The PFC Advanced Black Edition. Milled from a solid block of aluminum and anodized in black color, armored like a Leopard II in combat, only 400 g heavier than the standard one, completely waterproof housing (if the breather valve is replaced with a sealed screw). Beast Mode activated. Now it does not matter anymore if you use it for tactical forces, outdoors under the Niagara Falls or in beautiful sunshine in the desert of nowhere. Unlocked and loaded, only your imagination is the limit.

Galaxis PFC Advanced black edition USB connection cable

Galaxis PFC Advanced mini RF amplifier for black edition

Galaxis PFC Advanced mini RF amplifier for silver edition

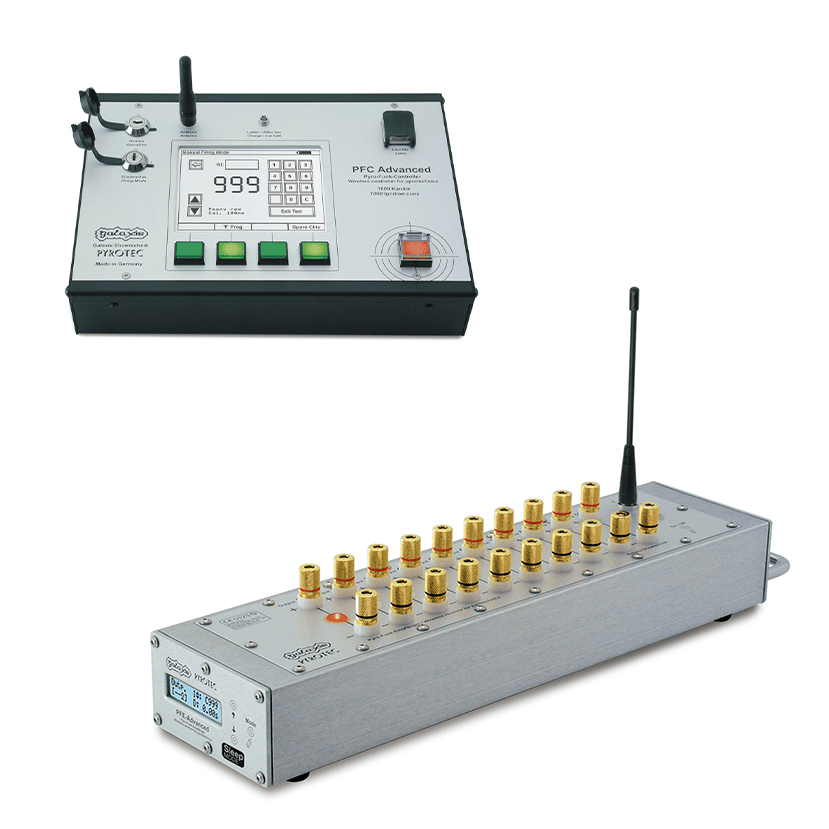

The PFC Advanced was designed to fire pyrotechnic shows. It is a completely self-sufficient firing device that users worldwide have relied on for more than 15 years. Due to the various interfaces, this device is also ideal for complex music fireworks and multimedia shows.
The device offers a fully integrated wireless solution. No external radio modules are required. In addition, the function does not depend on any external data lines. This eliminates these frequent sources of error.
The PFC Advanced has the following interfaces for integration into multimedia shows: SMPTE Timecode and DMX512.
The device has a very large, illuminated LC display with touch operation. The menu navigation is graphical and multilingual with icons and plain text. Illuminated function keys ensure convenient operation.
Info texts can be assigned manually to each firing channel or loaded from the PC via USB. This means that you can constantly read on the display which effect will be fired next. You have the option of firing manually, automatically (firing script) or semi-automatically (mixture of manual and firing script). In all firing modes you can trigger spare channels at any time.
In manual firing mode, you can quickly access all firing channels directly via a graphically displayed keypad. A dead man’s switch and the possibility to suppress the firing channel during the running automatic firing script offers additional safety.
In addition, you can also intervene at any time with the functions ‘Pause’, ‘Cancel’ and ‘Immediately fire next channel’ during automatic firing. Firing scripts can either be entered manually or loaded into the device via the RS232 and USB interfaces.
The smallest time interval between two firing channels is 0.3 seconds, the largest 999.9 seconds. To be able to fire effects in even shorter intervals, we recommend our stepper extensions for the PFE Advanced receivers. Here the timing between the firing cues can be lowered to just 0.01 seconds. Even the most extreme applications (fast and long step sequences, dynamic speed changes) can be easily realized here.
An external firing input enables you to trigger external firings. Thus push buttons, light barriers, tear ropes and much more can be used as firing triggers.
The power supply is provided by a high-performance rechargeable battery, which allows an operating time of up to 6 hours. The status of the built-in battery is accurately displayed. In addition, you can supply the device with an external voltage source via a multifunction socket. Intelligent charging electronics ensure that the batteries are always kept at 100% availability without overcharging.
No connection to a PC is required for firing. This means for you: No laptop that reacts sensitively to temperatures, humidity and vibrations, no unstable operating systems and no error-prone cable connections are necessary!
When using receivers of the Advanced series, all relevant data can be conveniently requested and programmed at the PFC (bi-directional communication).
The RS485 interface provides the possibility to communicate with the PFE Advanced 10/100 Outputs also via cable.
Technical details:
-  Dimensions:                              303 x 98 x 210 mm -  Net weight:                               3,200 g

Galaxis PFC Advanced standard controller, incl. DMX firing option

The PFC Advanced was designed to fire pyrotechnic shows. It is a completely self-sufficient firing device that users worldwide have relied on for more than 15 years. Due to the various interfaces, this device is also ideal for complex music fireworks and multimedia shows.

The PFE Advanced 10 Outputs is the most renowned receiver in the field of wireless firing technology and is a true all-rounder. A real revolution, since the year 2002. The receiver is waterproof (at least IP65) and has an ultra-stable housing made of thick-walled, anodized aluminum. This allows the device to be used even in the most extreme outdoor applications. Due to its small dimensions, it is also ideal for indoor and SFX applications.
The device offers a fully integrated radio solution. No external radio modems are required. In addition, the function does not depend on any external data lines. This eliminates these frequent sources of error.
For operation, you can access the menu with the magnetic pen and check or program all values and settings on site. Even switching on and off is done with the magnetic pen. So there are no vulnerable buttons or switches. An optional code request after switching on prevents unauthorized use of the device. Also with this receiver all outputs are completely freely programmable.
The gold-plated connection terminals accept individual wires as well as banana plugs or quick-fastening clamps and enable extremely low contact resistance with permanent corrosion resistance.
The PFE Advanced 10 Outputs has a plain text display for menu navigation and for displaying all device data (battery values, remaining range, programming, etc.), as well as multi-color LEDs for displaying all relevant output states with different colors (continuity, programming, firing, etc.).
Based on the resistance values of the connected firing circuits and the set limit resistance, the device automatically determines whether firing is reliably possible and displays this to you.
24 Volt firing voltage enable the reliable firing of 14 ‘A’- or ‘U’-matches in series or 20 ‘A’- or 10 ‘U’-matches in parallel. Due to a special mixture of series and parallel connection it is even possible to fire up to 280 e-matches per output and at a specific time.
As the firing power is not buffered by a capacitor, this receiver is also ideal for controlling solenoid valves and effect devices. With the optional terminal function, all 10 outputs can be triggered several times with all 999 channels and an adjustable firing duration of 0.1 to 25.0 seconds.
The high-performance rechargeable batteries deliver firing currents of up to 50 amps. Intelligent charging electronics ensure that the batteries are always kept at 100% availability without overcharging.
In conjunction with the PFC Advanced or the PFM Advanced USB Radio Modem, bi-directional communication is possible. You can read all relevant receiver data from your controller or PC, e.g. remaining range, battery status, continuity test, etc. Even the programming of the outputs can be easily edited remotely. These remote accesses can be carried out with up to 999 devices. In addition, the device can be completely switched off by radio or put into a sleep mode and woken up again to increase the maximum operating time from 60 hours to up to 35 days.
A stepper extension is available as an option, giving you virtually unlimited possibilities. An individual delay time can be assigned to each output. This means that even many different step operations are possible in one device at the same time. The step operations can be assigned to any number of receivers. Dynamic speed changes can be easily realized. The firing delay can be set from only 0.01 up to 99.99 seconds. These delay values are digitally adjustable over the entire range in steps of 0.01 seconds.
An optionally available plug-in Matrix Module creates an absolutely full-featured receiver with 100 outputs. Even when using the Matrix Module, you can freely program all outputs, all outputs are stepable (optional) and the parameters of all outputs can be accessed and programmed directly on the device or via radio.
If the battery voltage is too low, the unit can be switched off automatically to protect the batteries from deep discharge. The multi-function sockets can be used to connect an external power supply. An RS485 interface for optional cable control of the device is available.
A build-in RS485 interface for optional cable communication is included.
The devices of the ‘Advanced’ series are fully compatible with the devices of the ‘Profi’ series. The possibility of software updates allows you to keep your firing system constantly up to date. The PFE Advanced is a German high quality product. The used high-quality components guarantee highest reliability and a very long lifetime.
Specifications:
-  Dimensions:                    103 x 86 x 430 mm
-  Weight:                           4500g

Galaxis PFE Advanced 10 output receiver (black), incl. stepping extension

The PFE Advanced 10 Outputs is the most renowned receiver in the field of wireless firing technology and is a true all-rounder.

Galaxis PFE Advanced 10 output receiver (silver), incl. stepping extension

Galaxis PFE Advanced 20 output receiver, incl. stepping extension

This DMX interface is used to easily control effect devices with a DMX-512 input with a PFE Advanced receiver and to integrate these devices in the system. Typical applications are the control of smoke machines and flame projectors.
It is required that the receiver is equipped with the Terminal function. This enables the user to program several firing cues to each output and to determine the duration how long the outputs should be active.
The interface comes with a safety input and five control inputs and is powered from the receiver. In general the safety input is used for the power supply. As soon as voltage is present on the safety input a DMX signal is being generated with DMX channel 1 on 100%. The inputs 1-5 are translated to the DMX channels 2-6 (0% or 100%).
Even though DMX is considered to be an unsafe protocol (no checksums or other safety measures are implemented) the usage of this interface is rather safe, because the DMX signal is only generated if the interface is powered from the receiver’s output.
Safety channel:                                       Yes Control channels:                                     5 + Safety Connectors on the inputs:                         4 mm banana plugs, fit in on every PFE Advanced receiver Output:                                                   XLR, 5 pins Control time with terminal function:           0.1s to 25.0s, Continuously On

Galaxis PFE Advanced DMX interface

This DMX interface is used to easily control effect devices with a DMX-512 input with a PFE Advanced receiver and to integrate these devices in the system. Typical applications are the control of smoke machines and flame projectors.

The PFE Advanced Mini 5 Outputs is the newest receiver of the Advanced series. Thanks to its compact size, it is ideal for SFX and stage pyrotechnics.
The five outputs of the PFE Advanced Mini 5 can be individually programmed directly on the device and optionally stepped. Of course, the PFE Advanced Mini 5 can also be programmed directly by radio from the PFC Advanced.
The internal resistance measurement indicates exactly how high the resistance of the connected e-matches including the igniter cable is. The result can be read either on the device itself or remotely from the PFC Advanced. Based on the resistance values of the connected firing circuits and the set limit resistance, the device automatically determines whether firing is reliably possible and displays this to you.
A new type of connection socket makes working much easier. No tools are required for connecting and disconnecting. To connect the igniter cable, it is simply plugged into the contact mechanism and automatically clamped. To disconnect the cables, simply press the respective button to release the cable. The connection terminal can also be removed completely. This makes the preparation of effects much easier, especially if it is a recurring show or the preparation of numerous props for multiple takes on the set.
The device is operated with two Mignon cells, which can be alkaline batteries or NiMH rechargeable batteries. The operating time is up to approx. 18 hours. Using the optional Sleep mode, the stand-by time can be increased to 23 days.
Each of the five firing outputs has its own capacitor. This means that a short circuit on one output does not affect the firing power of the other outputs.
The device can trigger 3 ‘A’ or 2 ‘U’ e-matches in parallel or series connection on each output.
To increase the firing power, several outputs can also be programmed identically and thus fired simultaneously – without any time delay.

Galaxis PFE Advanced mini, 5 outputs receiver with stepping function, excl. battery

The PFE Advanced Mini 5 Outputs is the newest receiver of the Advanced series. Thanks to its compact size, it is ideal for SFX and stage pyrotechnics.

Galaxis PFE Profi audio

By this innovative product, stereo audio signals of first-class quality are provided absolutely synchronously to your show. It is, in other words, a kind of ‘radio-controlled CD player’ only that this does not lead to time errors (asynchrony) unlike many common playback devices.

The PFE Profi Midi 1 Output is a cost-effective single output receiver. The receiver is particularly suitable for perfectly covering several individual positions. This includes firing of ice fountains, applications with numerous and different illumination positions or lighting candles at gala events. Due to its low cost, it is also the right receiver when things get rough: For example as a kamikaze device for car explosions in the SFX area.
Highlights:
-  Cost-effective receiver -  Can also be used as kamikaze device -  Ideal for numerous individual positions -  Integrated firing LED for fast testing

Galaxis PFE Profi Midi 1 output, excl. battery

The PFE Profi Midi 1 Output is a cost-effective single output receiver. The receiver is particularly suitable for perfectly covering several individual positions. This includes firing of ice fountains, applications with numerous and different illumination positions or lighting candles at gala events. Due to its low cost, it is also the right receiver when things get rough: For example as a kamikaze device for car explosions in the SFX area.

The PFM Advanced USB Radio Modem offers highest comfort when programming receivers of the Advanced series as well as the G-Flames. With the help of the Composer software, scripts can easily be wirelessly transmitted to all relevant devices. This prevents faulty programming.
Furthermore, all receivers can be switched off remotely, put into sleep mode and be woken up again. Of course, all relevant parameters such as range test results, battery status, resistance values, etc. can also be requested individually at any time.
Spontaneous changes to the programming can also be implemented extremely fast and flexibly.
Highlights:
-  Extemely fast, automated programming via PC -  Remote data requests, remote switch-off, sleep and wake-up from PC possible -  Full overview of all devices from the FOH -  Fast changes of the programming possible at any time
Specifications:
Dimensions without antenna:               54 x 102 x 45 mm Net weight:                                        140 g

Galaxis PFM Advanced USB modem incl. antenna & USB cable

The PFM Advanced USB Radio Modem offers highest comfort when programming receivers of the Advanced series as well as the G-Flames. With the help of the Composer software, scripts can easily be wirelessly transmitted to all relevant devices. This prevents faulty programming.

The PFS Pocket is a small handheld transmitter, which is perfectly suitable for magicians, in the SFX area, as well as for fast production processes and has proven itself. Thanks to its small dimensions it not only fits everywhere, you can also operate it with only one hand.
There are numerous applications where you simply cannot take a large controller with you, for example when using G-Flames inside a stadium, where you have to set up the show extremely fast, start it and take it down just as quickly.
With the PFS Pocket the number of firing cues is limited to 6. At first glance, this may not seem much until you become aware of the possibilities: Since each firing cue can even be programmed several times on each and several devices, completely new ways open up. For example, a full step sequence can be performed over several G-Flames, while various PFE Advanced 10 Outputs receivers trigger confetti shots and fire single shots. All this with a single firing channel.
The PFS Pocket can handle all radio channels (Europe or USA) and can be programmed to a specific radio channel. Furthermore, it can not only teach-in receivers, but can also be taught-in to a transmitter (different coding). This simplifies renting of other equipment as well as splitting system codes enormously.
Despite its size, the PFS Pocket offers enough safety features to avoid unwanted firings. On the one hand the separate firing mode must be activated, on the other hand the dead man function can be activated optionally. Firing cues are only fired if the dead man key is additionally pressed.
Highlights:
-  Amazingly small handheld transmitter -  Direct selection of firing cues -  Dozens of possibilities per cue -  High level of safety thanks to the dead man function -  Robust membrane keypad
Specifications:
Dimensions:           133 x 65 x 22 mm Net weight:            165 g

Galaxis PFS Pocket mini controller, excl. battery

The PFS Pocket is a small handheld transmitter, which is perfectly suitable for magicians, in the SFX area, as well as for fast production processes and has proven itself. Thanks to its small dimensions it not only fits everywhere, you can also operate it with only one hand.

Galaxis PFS Profi wireless firing controller

Galaxis RF Amplifier, 30W in flightcase

Galaxis Switching interface, 220 V

The Galaxis Composer software is a powerful design suite for all Galaxis users for scripting of music-synchronized shows. Of course, projects without music synchronization can also be realized with it.
This software offers a highly efficient effect database, which includes all relevant parameters, and it is an inventory management system as well.
The design of flame shows with the G-Flames has been implemented and here a visual simulation of the shows is at your disposal.
After you are finished with the design, in part or as a whole, you can easily export the data in order to create a simulation of the show with one of the professional solutions like ShowSim, Finale 3D or others.
In conjunction with the Galaxis wireless USB modem PFM Advanced the computer is transformed into a convenient remote programming and test tool for bi-directional devices like Advanced receivers and G-Flames. Due to the quick programming function, these devices can be programmed very efficiently. Furthermore, the Composer can scan all available radio channels and informs you which channels are occupied by other applications.
The firing script is being downloaded to the Controller PFC Advanced via USB before the show. The display is always being fired from the controller and never from the PC to avoid that blue screens or ‘fatal exception errors at address XY’ can spoil whole shows.
Comprehensive import and export functions are available. Due to the compatibility with the most professional visualization and scripting software, the Composer offers ultimate freedom to the designer.
Another useful function of the Composer is the generation of SMPTE Timecode wave files. These can be e.g. played back by the PFE Profi Audio in order to synchronize lights, laser and water shows or to integrate other firing systems in a fireworks display. This timecode is sinusoidal and SMPTE compliant and because of this severe problems resulting from bad or noncompliant Timecode are prevented.
The used material can be easily deducted from the inventory list after the project so that all quantities in all storage locations are up to date.
Highlights:
-  Powerful choreography software -  Programmed by our in-house developers -  Compatible with other design and visualization programs -  Programming of the devices via USB Radio Modem -  Comprehensive effect database with warehouse management -  Free Updates

Galaxis USB dongle for Pyrotec Composer software

The Galaxis Composer software is a powerful design suite for all Galaxis users for scripting of music-synchronized shows.

Battery operated cap discharge controller systems with 2 channels, suitable for use with both Pyroflash and ProStage II effects.
Each of the 2 channels can be fired individually and up to 8 effects wired in series (16 effects). Or up to 16 effects if only one channel is to be used.
Features:
-  Has both bulgin and turret connections, so is suitable for Pyroflash and wired effects -  Can be used with a mains power supply. Optional extra  -  New test facility is available when armed AND unarmed

Le Maitre Pro stage 2-way controller, incl. adapter

Battery operated cap discharge controller systems with 2 channels, suitable for use with both Pyroflash and ProStage II effects.

Battery operated cap discharge controller systems with 6 channels, suitable for use with both Pyroflash and ProStage II effects. A power supply is available as an option.
Each of the 6 channels can be fired individually with 50 metres of cable and up to 8 effects wired in series (48 effects). Or up to 16 effects if only one channel is to be used. It also has an additional channel for connecting to the Air Interface when using an Electric Air Cannon.
Features:
-  Has both bulgin and turret connections, so is suitable for Pyroflash and wired effects -  Can be used with a mains power supply. Optional extra  -  New test facility is available when armed AND unarmed

Le Maitre Pro stage 6-way controller, incl. adapter

Battery operated cap discharge controller systems with 6 channels, suitable for use with both Pyroflash and ProStage II effects. A power supply is available as an option.

The RapidFire 12S is a 12 channel, electronically initiated firing system, specifically designed for use with Le Maitre's pyrotechnics fitted with Standard Pod sockets and Pro quick connects.
The system gives you the ability to fire up to 12 channels singularly or in step-fire mode. It can also fire up to 12 channels in a speed sequence set by the operator. There is no individual physical channel isolation.
It is advised that no more than 5 effects are fired from one channel, unless the loop resistance can be assured as less than 20 Ohms when powered by mains.
Features:
-  Constant current. -  Capacitive discharge firing pulses ensures correct firing energy. -  High current rugged discrete control mosfets. -  Single, Autostep, and Autorun modes. -  Reset, Select and Preview buttons. -  A Lockout to 'no channel selection' after the 12th channel firing prevents 'loop around'. -  Mains or external input power socket for d.c. voltage supplies from 18-36 Volts   -  Analog 'Rate' control - 1 sec per ignition up to 15 ignitions per second.
Specifications:
-  Dimensions:                   285mm x 305mm x 80mm
-  weight:                          3,7 kg

Le Maitre Rapidfire 12S sequencer

The RapidFire 12S is a 12 channel, electronically initiated firing system, specifically designed for use with Le Maitre's pyrotechnics fitted with Standard Pod sockets and Pro quick connects.

Showven PyroAdaptor

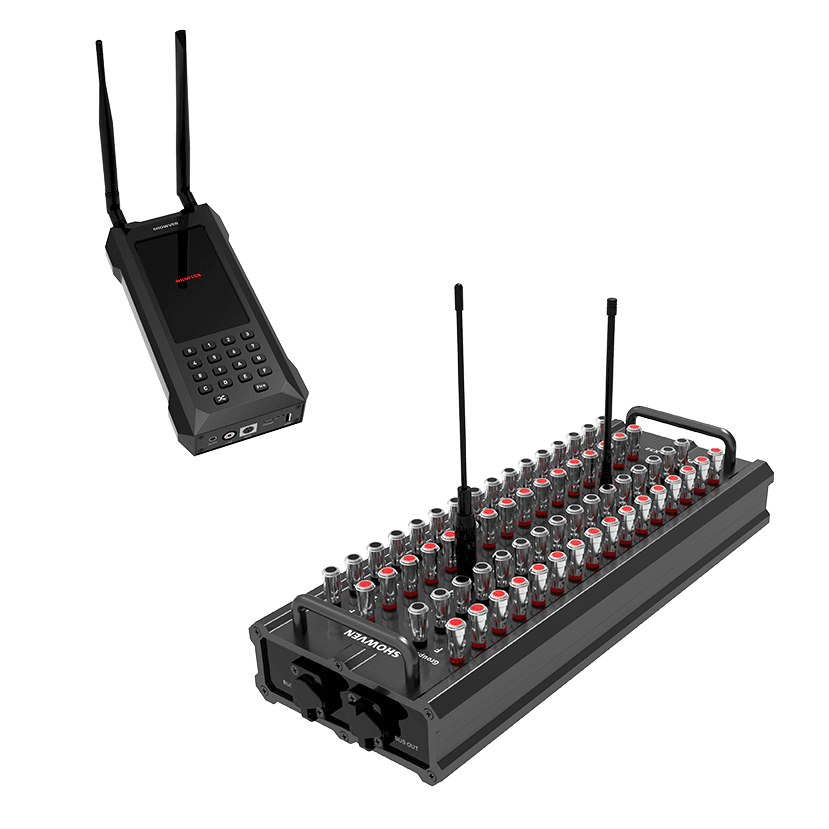

PyroMote is a handheld intelligent system dedicated to controlling PyroSlave for fireworks displays. It uses a touch screen to complete the setting operation and a physical keyboard to realize the ignition operation. It can not only realize manual firing with buttons, but also running auto ignition files. Besides, it supports TLC time code function. It is a handy and powerful tool for small to medium-sized fireworks displays.
Specifications:  Dimension: 218 x 107 x 40mm  Net Weight: 0.5kg  Input: 5V 2A  Work Power: 10W  Casing material: Aluminium  Battery Powered: 2pcs 18650 battery  Charging Time: 3h  Standby Time: 6h  Wireless Function: Dual band wireless PYRO  Interface: USB, 3.5mm Audio Output, LTC IN, DMX OUT  Work Temp.: -20℃-50℃
Features and advantages  433M and 868M dual band wireless, stable wireless signal output  5 inch high resolution capacitive screen, clear and easy operation  Support FXcommander_Editor Software for flexible effects programming  Fast and convenient manual firing  Dual-core processor, smooth operation  Support LTC to realize precise synchronization of effects with music  Built-in synchronous output AUDIO signal, achieve precise synchronization of output music  Support USB back up of files  Support simple DMX operation  18650 battery powered, easy replacement  Multi languages

Showven PyroMote

PyroSlave is a serial fireworks igniter specially designed for pyro technicians and stage special effects professionals. To adapt to extreme outdoor applications, PyroSlave is equipped with robust aluminum housing, touch keys, and metal connection terminals. PyroSlave can be operated both wired and wireless. Wireless mode with dual-band antennas communicate simultaneously, preventing signal interference on a single frequency band. The 2-wire PBUS technology used in wired communication can realize power supply while communicating. There are two models of PyroSlave available X16 and X32.
 Specifications:  Dimension: X16: 335 x 165 x 85 mm;X32: 425 x 165 x 85 mm  X16: 3 kg;X32: 4.1kg  X16: 16;X32: 32  Trigger Indicate: LCD display and record  Address: 256 (00 to FF)  Control: Dual-band wireless, 2-wire PBUS (communication + charging)  Wireless Range: 600m  Wired Range: 2000m  Firing Voltage: 24V  Firing Current: 5A  Firing Duration: 500ms  Resistance Test: Yes  Battary: Support 4 * 18650 cell, 4.2V, 2500mAh per piece (battery not included)  Operation Time: 60h, sleep mode 2 weeks; Wired mode: non-stop  Charging Control: Max. 25 units PyroSlave per PyroAdaptor  Wired Communication: Max. 64 units PyroSlave per PyroAdaptor  Charging Time: Appr. 6h  Waterproof Level: IP65  Minimum Firing Interval: 10ms
Features and advantages  Robust aluminum housing and metal connection terminals, waterproof and dustproof as well as prevent the impact of sparks drop from fireworks  Can be operated both wired and wirelessly  Wired mode with 2-wire PBUS technology can realize power supply while communicating, ensure continuous working  Wireless mode with dual band antennas communicate simultaneously, preventing signal interference on a single frequency band  Wireless mode with 4 wireless channels, 65536 ID. Only when FXcommander and Slave with exactly the same wireless channel and ID before they can communicate. Ensure safe firing  Firing precision 100 firings/s  Pyro bridge function of PyroSlave ensure versatile communications, avoid signal obstacles behind big stage  2 * M10 hole convenient for truss installations

Showven Pyroslave X16

PyroSlave is a serial fireworks igniter specially designed for pyro technicians and stage special effects professionals. To adapt to extreme outdoor applications, PyroSlave is equipped with robust aluminum housing, touch keys, and metal connection terminals. PyroSlave can be operated both wired and wireless. Wireless mode with dual-band antennas communicate simultaneously, preventing signal interference on a single frequency band. The 2-wire PBUS technology used in wired communication can realize power supply while communicating. There are two models of PyroSlave available X16 and X32.
 Specifications:  Dimension: X16: 335 x 165 x 85 mm;X32: 425 x 165 x 85 mm  X16: 3 kg;X32: 4.1kg  X16: 16;X32: 32  Trigger Indicate: LCD display and record  Address: 256 (00 to FF)  Control: Dual-band wireless, 2-wire PBUS (communication + charging)  Wireless Range: 600m  Wired Range: 2000m  Firing Voltage: 24V  Firing Current: 5A  Firing Duration: 500ms  Resistance Test: Yes  Battary: Support 4 * 18650 cell, 4.2V, 2500mAh per piece (battery not included)  Operation Time: 60h, sleep mode 2 weeks; Wired mode: non-stop  Charging Control: Max. 25 units PyroSlave per PyroAdaptor  Wired Communication: Max. 64 units PyroSlave per PyroAdaptor  Charging Time: Appr. 6h  Waterproof Level: IP65  Minimum Firing Interval: 10ms
Features and advantages  Robust aluminum housing and metal connection terminals, waterproof and dustproof as well as prevent the impact of sparks drop from fireworks  Can be operated both wired and wirelessly  Wired mode with 2-wire PBUS technology can realize power supply while communicating, ensure continuous working  Wireless mode with dual band antennas communicate simultaneously, preventing signal interference on a single frequency band  Wireless mode with 4 wireless channels, 65536 ID. Only when FXcommander and Slave with exactly the same wireless channel and ID before they can communicate. Ensure safe firing  Firing precision 100 firings/s  Pyro bridge function of PyroSlave ensure versatile communications, avoid signal obstacles behind big stage  2 * M10 hole convenient for truss installations

Showven Pyroslave X32

PyroSlave X4 is a fireworks igniter specially designed for stage special effects professionals to wireless control of Flamer, confetti shooter etc via Pyro signal. To adapt to extreme outdoor applications, PyroSlave X4 equipped with robust aluminum housing, touch keys, and metal connection terminals. PyroSlave X4 with 433M and 868M dual-band antennas communicate simultaneously, preventing signal interference on a single frequency band. Compared with wireless DMX, PyroSlave X4 wireless signals have perfect anti-interference performance in large-scale events.
 Specifications:  Dimension: 150 x 165 x 85 mm  Net Weight: 1.3 kg  Output: 4  Trigger Indicate: LCD display and record  Address: 256 (00 to FF)  Control: Dual-band wireless  Wireless Range: 600m  Firing Voltage: 24V  Firing Current: 5A  Firing Duration: 500ms  Resistance Test: Yes  Battery: 2 * 18650 cell (4.2V, 2500mAh), battery not included  Operation Time: 60h, sleep mode 2 weeks  Charging Port: Type C  Charging Time: Appr. 6h  Waterproof Level: IP65  Minimum Firing Interval: 10ms
Features and advantages  433M and 868M dual band wireless, stable wireless signal output  5 inch high resolution capacitive screen, clear and easy operation  Support FXcommander_Editor Software for flexible effects programming  Fast and convenient manual firing  Dual-core processor, smooth operation  Support LTC to realize precise synchronization of effects with music  Built-in synchronous output AUDIO signal, achieve precise synchronization of output music  Support USB back up of files  Support simple DMX operation  18650 battery powered, easy replacement  Multi languages

Showven Pyroslave X4

The TX2-Stage is a bidirectional transmitter of the X2-series, used to control receivers either via manual ignition signals, the AutoMode, or PC-Mode. Thanks to its small size it is especially well suited for smaller outdoorshows, stage pyrotechnics, or as a backup transmitter.
FEATURES: -  Safe, multiple times encrypted radio transmission. -  Powerful NiMH-battery. -  Control for up to 8.000 sigle ignitions with the AutoShow. -  Compact and handy design.
Technical details:
Measurements:                             85 x 170 x 50mm
Weight:                                        680g Power Supply:                               1x NiMH-battery 12VDC
Case:                                           Plastic Radio range:                                 400m Standby:                                      24 hours

TX2-Stage transmitter

The TX2-Stage is a bidirectional transmitter of the X2-series, used to control receivers either via manual ignition signals, the AutoMode, or PC-Mode. Thanks to its small size it is especially well suited for smaller outdoorshows, stage pyrotechnics, or as a backup transmitter.

Pyro Firing Systems
